Anti-Hu CD94 PE

Regulatory status

RUO

Antigen

CD94

Clone

HP-3D9

Format

Reactivity

Human

Application

FC (QC tested)

Excitation laser

blue (488 nm)

Variant

100 tests

1P-727-T100

In stock

242.00 USD

25 tests

1P-727-T025

Delivery 1 week

121.00 USD

Variant

100 tests

1P-727-T100

In stock

242.00 USD

25 tests

1P-727-T025

Delivery 1 week

121.00 USD

Contact distributor

Product details

Description

Images

References

SDS download

Isotype

Mouse IgG1 kappa

Specificity

The mouse monoclonal antibody HP-3D9 recognizes an extracellular epitope of CD94, a 70 kDa type II transmembrane glycoprotein expressed on NK cells, NK-T cells, and subsets of CD8+ T cells and gamma/delta T cells.

Workshop

HLDA V: WS Code NK82

Application

FC (QC tested)

Application details

Flow cytometry: The reagent is designed for analysis of human blood cells using 10 μl reagent / 100 μl of whole blood or 10⁶ cells in a suspension. The content of a vial (1 ml) is sufficient for 100 tests.

Reactivity

Human

Immunogen

Cultured human NK cells

Preparation

Purified antibody is conjugated with R-phycoerythrin (PE) under optimum conditions. Unconjugated antibody and free fluorochrome are removed by size-exclusion chromatography.

Formulation

Stabilizing phosphate buffered saline (PBS), pH 7.4, 15 mM sodium azide

Storage and handling

Store at 2-8°C. Protect from prolonged exposure to light. Do not freeze.

The product is intended For Research Use Only. Diagnostic or therapeutic applications are strictly forbidden. Products shall not be used for resale or transfer to third parties either as a stand-alone product or as a manufacture component of another product without written consent of EXBIO Praha, a.s. EXBIO Praha, a.s. will not be held responsible for patent infringement or any other violations of intellectual property rights that may occur with the use of the products. Orders for all products are accepted subject to the Term and Conditions available at www.exbio.cz. EXBIO, EXBIO Logo, and all other trademarks are property of EXBIO Praha, a.s.

Other names

KLR-D1, KLRD1, KCLLRD1

Antigen description

CD94, also known as KLRD1 (killer cell lectin-like receptor D1), is a transmembrane glycoprotein of the C-type lectin family, which forms disulfide-linked heterodimers with NKG2A, B, C, E, H proteins, constituting functionally distinct receptors of NK cells and related cell types. CD94/NKG2A and CD94/NKG2B heterodimers serve as inhibitory, whereas CD94/NKG2C and CD94/NKG2E as activating receptors. The ligand for CD94/NKG2 complexes has been identified as HLA-E. Extent of CD94 expression on NK cell surface can be used to demonstrate their progress through the differentiation process.

Entrez Gene ID 3824

UniProt ID Q13241

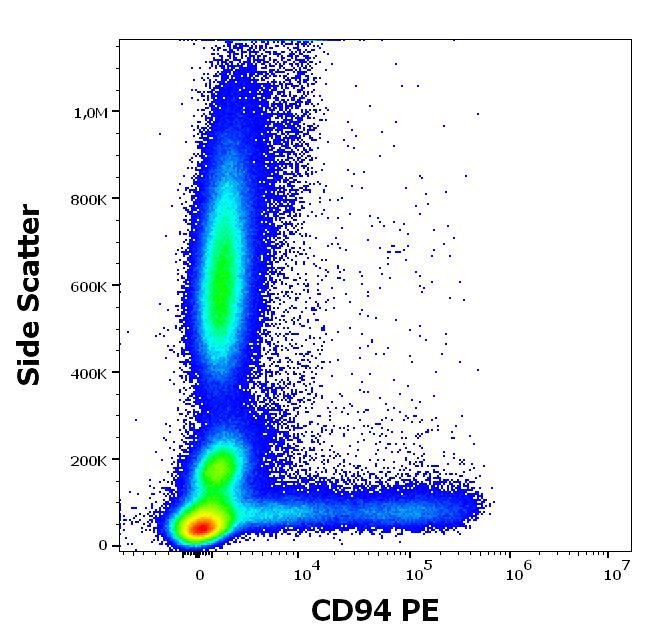

Anti-human CD94 PE antibody (clone HP-3D9) works in flow cytometry application.

Analysis of the antibody staining profile was performed on blood leukocytes isolated from buffy coats. HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13:827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Mouse monoclonal anti-human CD94 PE antibody (clone HP-3D9) was used in concentration 1 µg/ml in stained blood sample (2 x 10⁶ cells).

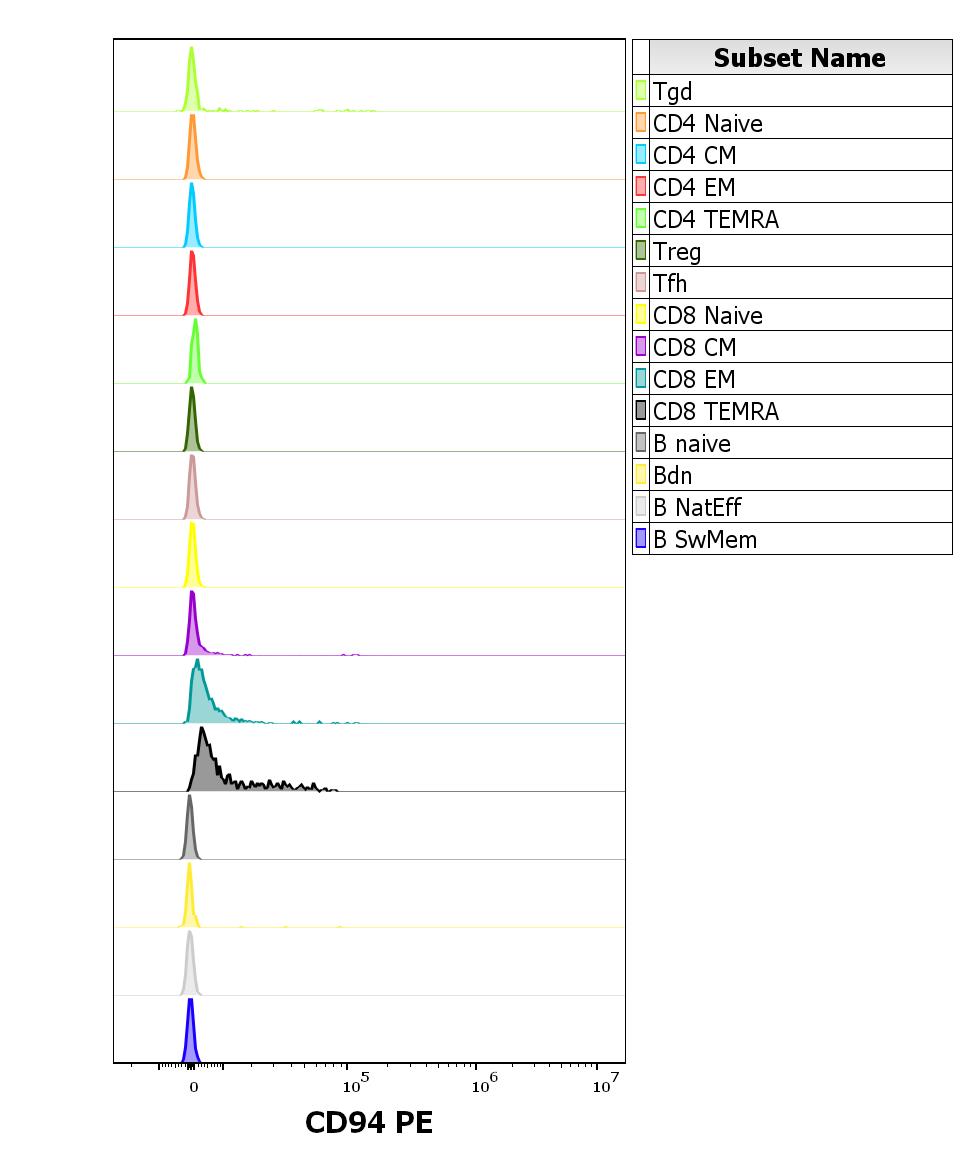

Expression profiling on peripheral blood subsets using Anti-human CD94 PE antibody (clone HP-3D9). Adaptive panel

HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13:827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Suspension of blood leukocytes isolated from buffy coats (2 x 106 cells) was added to the mixture of anti-human CD94 PE antibody (clone HP-3D9, 1 µg/ml in stained blood sample) and Monocyte Blocking Buffer (#ED7747), vortexed and incubated for 20 min. Next, optimized backbone antibody panel (HLDA Adaptive) was added to test tubes, vortexed and incubated for 20 min. The residual erythrocytes were lysed with 2 ml of 10× diluted EXCELLYSE Easy solution (#ED7066) and incubated for 10 min. Finally, samples were centrifuged (670 g, 5 min.), supernatant removed and the cell pellet was resuspended in 200 µl of PBS for acquisition.

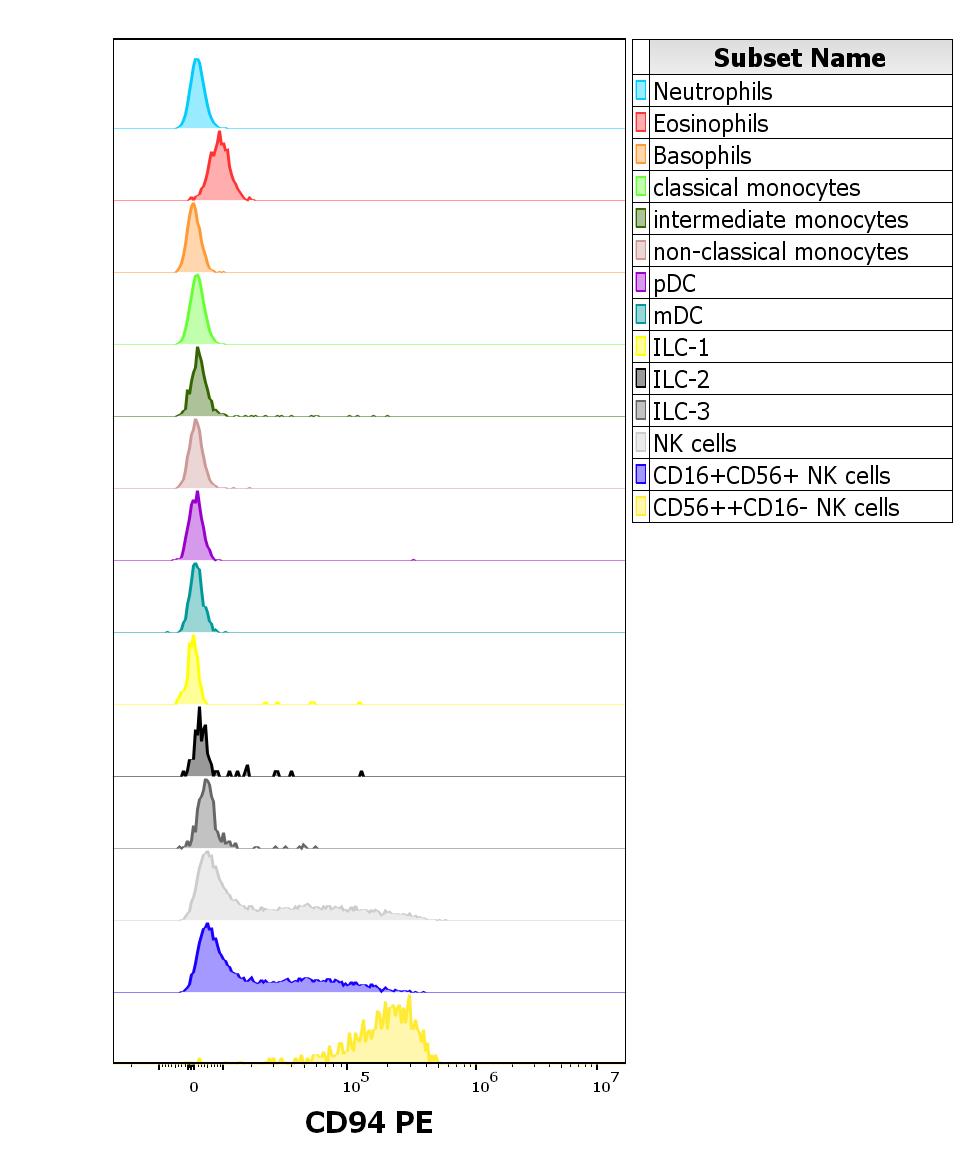

Expression profiling on peripheral blood subsets using Anti-human CD94 PE antibody (clone HP-3D9). Innate panel

HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13:827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Suspension of blood leukocytes isolated from buffy coats (2 x 106 cells) was added to the mixture of anti-human CD94 PE antibody (clone HP-3D9, 1 µg/ml in stained blood sample) and Monocyte Blocking Buffer (#ED7747), vortexed and incubated for 20 min. Next, optimized backbone antibody panel (HLDA Innate) was added to test tubes, vortexed and incubated for 20 min. The residual erythrocytes were lysed with 2 ml of 10× diluted EXCELLYSE Easy solution (#ED7066) and incubated for 10 min. Finally, samples were centrifuged (670 g, 5 min.), supernatant removed and the cell pellet was resuspended in 200 µl of PBS for acquisition.

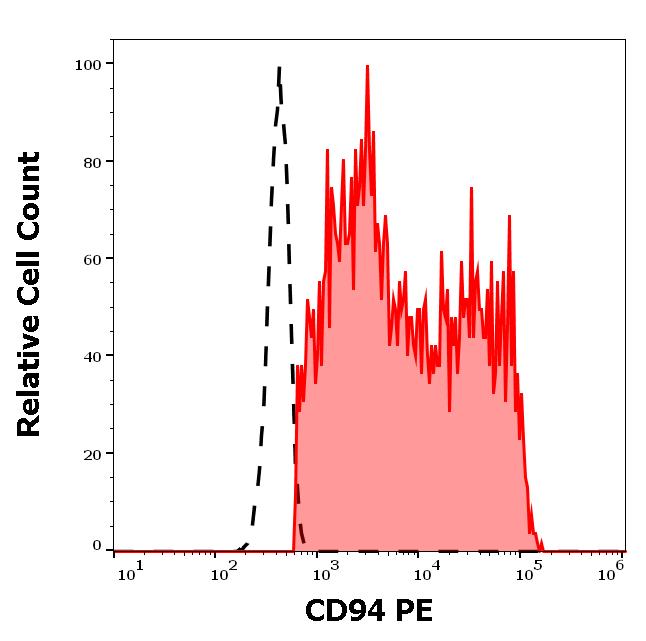

Separation of human CD94 positive lymphocytes (red-filled) from neutrophil granulocytes (black-dashed) in flow cytometry analysis (surface staining) of human peripheral whole blood stained using anti-human CD94 (HP-3D9) PE antibody (10 μl reagent / 100 μl of peripheral whole blood).

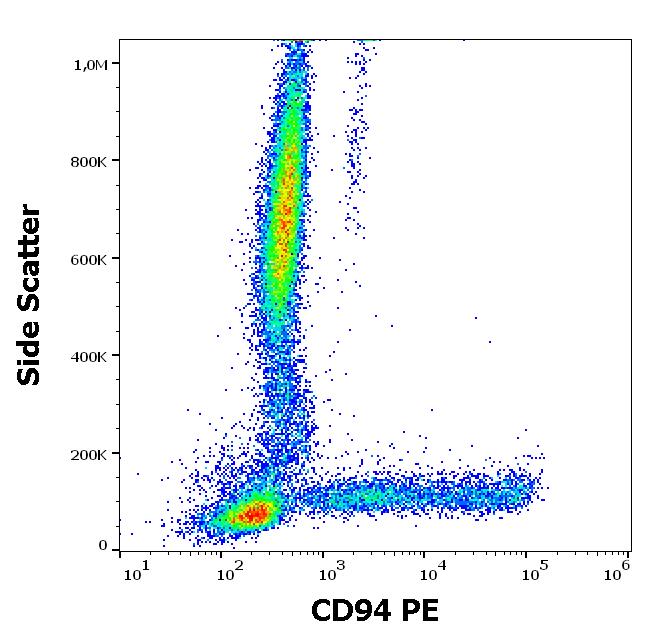

Flow cytometry surface staining pattern of human peripheral whole blood stained using anti-human CD94 (HP-3D9) PE antibody (10 μl reagent / 100 μl of peripheral whole blood).

Product specific references:

Yu J, Mao HC, Wei M, Hughes T, Zhang J, Park IK, Liu S, McClory S, Marcucci G, Trotta R, Caligiuri MA: CD94 surface density identifies a functional intermediary between the CD56bright and CD56dim human NK-cell subsets. Blood. 2010 Jan 14;115(2):274-81
PubMed

Phillips JH, Chang C, Mattson J, Gumperz JE, Parham P, Lanier LL: CD94 and a novel associated protein (94AP) form a NK cell receptor involved in the recognition of HLA-A, HLA-B, and HLA-C allotypes. Immunity. 1996 Aug;5(2):163-72.
PubMed

Seo N, Tokura Y, Ishihara S, Takeoka Y, Tagawa S, Takigawa M: Disordered expression of inhibitory receptors on the NK1-type natural killer (NK) leukaemic cells from patients with hypersensitivity to mosquito bites. Clin Exp Immunol. 2000 Jun;120(3):413-9.
PubMed

Hallermalm K, Seki K, De Geer A, Motyka B, Bleackley RC, Jager MJ, Froelich CJ, Kiessling R, Levitsky V, Levitskaya J: Modulation of the tumor cell phenotype by IFN-gamma results in resistance of uveal melanoma cells to granule-mediated lysis by cytotoxic lymphocytes. J Immunol. 2008 Mar 15;180(6):3766-74.
PubMed

Bovenschen HJ, Van De Kerkhof PC, Gerritsen WJ, Seyger MM: The role of lesional T cells in recalcitrant psoriasis during infliximab therapy. Eur J Dermatol. 2005 Nov-Dec;15(6):454-8.
PubMed

Ntrivalas EI, Kwak-Kim JY, Gilman-Sachs A, Chung-Bang H, Ng SC, Beaman KD, Mantouvalos HP, Beer AE: Status of peripheral blood natural killer cells in women with recurrent spontaneous abortions and infertility of unknown aetiology. Hum Reprod. 2001 May;16(5):855-61.
PubMed

Romero P, Ortega C, Palma A, Molina IJ, Peña J, Santamaría M: Expression of CD94 and NKG2 molecules on human CD4(+) T cells in response to CD3-mediated stimulation. J Leukoc Biol. 2001 Aug;70(2):219-24.
PubMed

Wada H, Matsumoto N, Maenaka K, Suzuki K, Yamamoto K: The inhibitory NK cell receptor CD94/NKG2A and the activating receptor CD94/NKG2C bind the top of HLA-E through mostly shared but partly distinct sets of HLA-E residues. Eur J Immunol. 2004 Jan;34(1):81-90.
PubMed
